User Space OS and Workspaces

User Space OS

Layout for the workspace box
  1. The easiest way to access the workspace box is clicking the “Load Workspace” pane on the Database Homepage. You can also access the workspace box from the menu in the Search Strain page.

  2. User items are assigned to one of the three tabs below. Click the labels to switch between tabs.

      1. Mine (default): items that are created and owned by You.
      1. Shared: items that are shared from your buddies.
      1. Public: items that are publicly released in EnteroBase.
  3. Folder-based explorer of items.

  4. A searching box allowing partial matching of the item names.

  5. A detailed description of the selected item in the left pane.

  6. Click to load an item. You can also open an item by double-clicking its name.

Remember, that when somebody shares a folder or other items with you, they will appear in Shared under their name rather than in Mine.

Shared and published items
  1. Workspaces and analyses in the “shared” and “public” tabs are grouped into folders named after their original owners.
  2. Shared items can be copied using “copy to Mine” option in the right-click menu.

Items in workspace box

The workspace dialog box in EnteroBase serves as a manage port for many user items.

Icon Name Description
folder Folder Subgroups of user items
ws Workspace Collection of genomes
gtree GrapeTree Phylogeny based on MLST
stree SNP Project SNP matrix and phylogeny
cview Custom View Collection of experimental data and user defined fields
udf User Defined Field Private editable metadata field
locus Locus Search MLST gene prediction of queried sequences

Folder system

Folders can be created to organise user items. Sharing a folder with your buddies will give them access to all the workspaces and analyses in the folder (both existing and future).

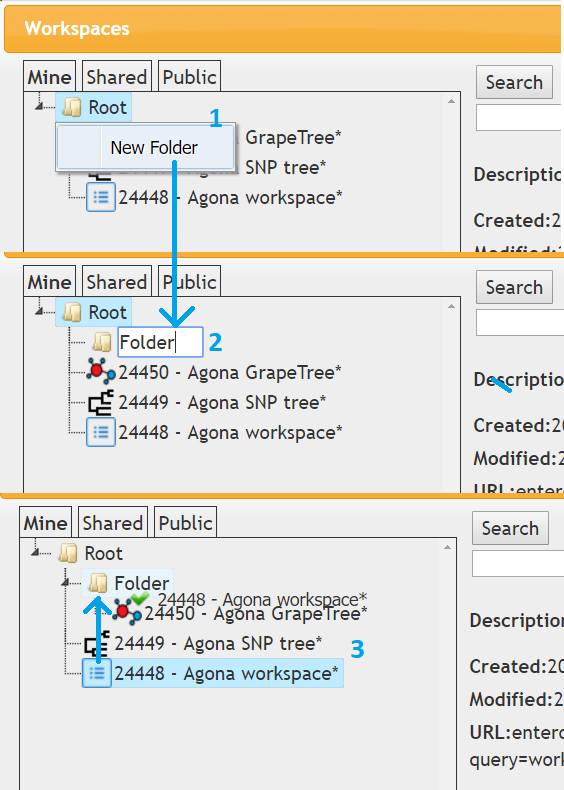

To create a folder:

  1. Right-click on any item to create a folder.
  2. Enter a memorable name for the folder.
  3. Drag a workspace and drop it in/out of a folder.


Workspaces allow you to define a set of strains in a defined group, which you can revisit at any time. Such groups should be considered as a list of strains used in a given study and can be shared with other users. (This functionality is covered in Managing your buddies). Workspaces are also the main method to defined input data sets for certain analysis pipelines in EnteroBase.

Take an existing set of search results and save a workspace via:

  1. From the menu above the strain records, go to the Workspace menu.
  2. Select Workspace -> Save
  3. Enter a memorable name for this workspace.
  4. Click save button

To retrieve a workspace:

  1. Go to the Workspace menu.
  2. Select Workspace -> Load
  3. Choose from the names of workspaces.
  4. Check the brief description of the workspace.
  5. Click load button.

Publish a workspace:

Publishing a workspace will make it accessible to all the users in EnteroBase. A public workspace can only be modified and/or retracted by administrators.

  • To publish a workspace, right-click and choose “Make Public” in the context menu.
