A Locus search enables the user to upload any sequence and get loci identified and alleles assigned for any scheme in the database. Thus, is can allow the identification of alleles for 7 gene MLST from a fasta file of allele sequences. In addition you could upload the sequence of an operon, phage or plasmid you are interested in and have that tagged with wgMLST loci. Furthermore loci in other strains in Enterobase can than be compared to the sequence that you uploaded.
Creating A Locus Search¶

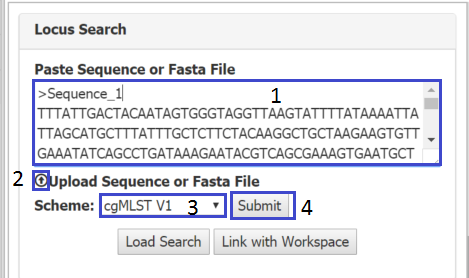

The Locus Search page can be reached from left hand menu under Tasks > Locus Search. In the top left hand panel textbox (1) paste a sequence of fasta file (the fasta file can contain multiple sequences). Or a sequence/fasta file can be uploaded using the button below the text box(2) . Make sure you select the scheme you require (3) and press submit. A dialog will appear allowing you to set a name and location for your locus search. If the search is taking a while, you can leave the page, return later to load the saved search (5).

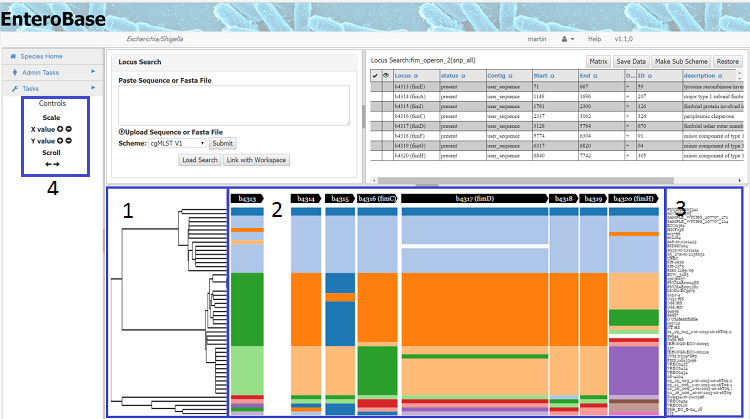

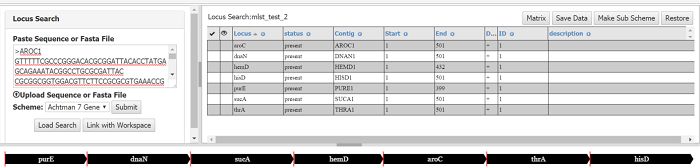

When a locus search is complete (or a previous search loaded) , a table will appear in the top right panel showing all the loci found in the input sequences and their position. Allele IDs are also given, however if a locus is discovered which contains a new allele it will not be assigned a new ID, since the validity and quality of the uploaded sequence cannot be ascertained. A Graphic representation is also given. Any contigs are just stitched together (in the order of the sequence) and boundaries between contigs are shown as red lines.
Obtaining More Information on Loci¶

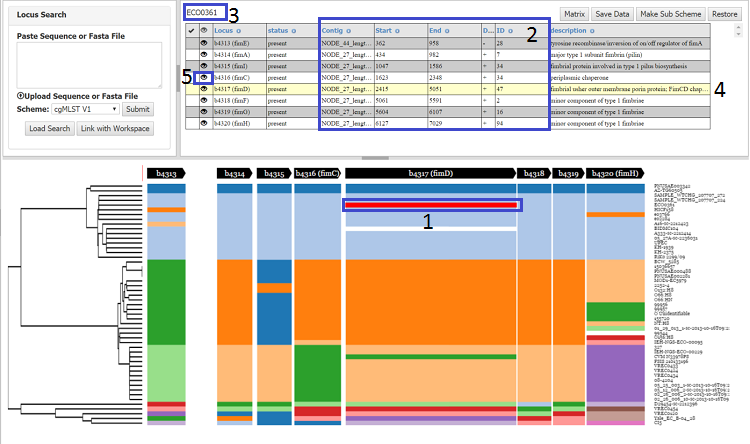

Clicking on a locus will highlight all loci in that particular block (1) and strain specific information (genomic location ,allele ID etc.) for all loci in the block will be shown in the table (4), with the name of strain being shown above the table (3). The actual locus clicked will be highlighted in the table (2). Clicking on the eye icon (5) for a locus will open up a genome viewer (JBrowse), which shows the position of that locus in the genome.

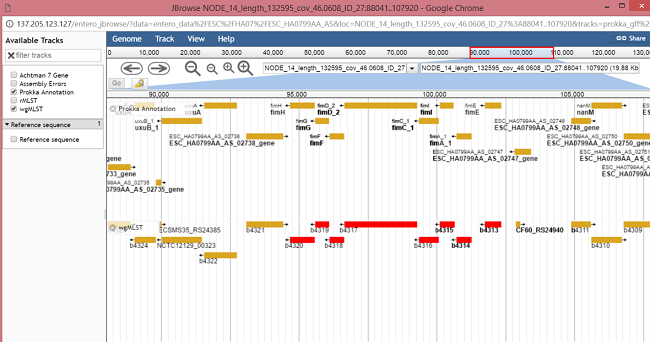

All loci in the selected block will be red in the wgMLST track. The other track shown by default displays all the genes in the prokka annotation, which may contain genes that are not in the wgMLST scheme and will contain more information on each gene (locus). Depending on the type of genome, other tracks (selected from the left hand panel) will be available e.g Assembly Errors, GenBank Annotation, other schemes etc. If the genome has not been viewed before it will have to be formatted which will take a few seconds, so please be patient.
The ‘Matrix’ button above the table will download a matrix containing allele IDs for loci (columns) in all the strains (rows). Absent loci will have an allele ID of 0. ‘Save Data’ will download all the data present in the table
Creating A Sub-scheme¶
A sub-scheme ([Custom View](User-Defined Content)) Can be created by checking the loci that you want in the main table and then pressing the ‘Make Sub Scheme’ button. A dialog will then appear which allows you to specify the name and location of the sub scheme (custom view), which can be viewed in the main search page.
